Special Features:
- The HydroTech custom Algiz 10X-HT is especially designed to communicate with all HydroTech, Hydrolab® / Hach® and YSI® multiprobes. The custom built-in power supply is powerful enough to power all sondes, even without internal batteries. The communication can be established via a terminal emulator or via proprietary software like Hydras 3®.
- The HydroTech custom Algiz 10X-HT is equipped with quick access buttons ( F keys) that can easily be customized by the end user to activate any windows program or to simulate any keyboard buttons.
- The custom Algiz 10X-HT gives you quick access to the Hibernate mode via one of the access buttons ( F keys ). Once the system is set to Hibernate, the power to the multiprobe is automatically turned off to save power.
- The custom Algiz 10X-HT is equipped with a special program that allows the user to automatically insert GPS coordinates into the Excel data files to minimize input errors and increase efficiency.
- Using a bluetooth keyboard and mouse, the custom Algiz 10X-HT is easily transformed into a desktop or lab PC.
- Fully compatible with all Hydrotech®, Hydrolab® and YSI® multiprobes.
The Algiz10X-HT is not an off-the-shelf product. It has additional hardware and software that are proprietary to HydroTech.
Proprietary Hardware:
Hydrotech has developed and added a power circuitry module that allows the Algiz10X-HT:
1- To have a built-in regulated 7 volts 1 amp to power any multiprobe via the onboard DB9 RS232 connector.
2- To automatically switch between external and internal power connection. The automatic switch happens when the external voltage drops below 7 volts.
3- To automatically cut off power to the multiprobe as soon as the Hydrotech Hibernate mode is activated. The hibernate function will allow the Windows system to restart within 15 seconds in lieu of 5 to 10 minutes restart which saves time and power during field use.
Proprietary Software:
1- Spacebar simulator program via quick access button:
Allows the end user to activate the spacebar function via a quick access button on the Algiz10X-HT. The access to the spacebar is required when using the Hydras 3LT software to save current data to the unit memory.
2- Escape key simulator program via quick access button:
Allows the end user to activate the escape key function via a quick access button on the Algiz10X-HT. The escape key is required by several programs to exit current process or windows.
3- Power hibernate function soft-key program via quick access button:
Allows the end user to quickly put the Algiz10X-HT to hibernate via a quick access button on the Algiz10X-HT. During the hibernate mode, the power to the multiprobe is automatically cut off to save power. There is no need to shut down any programs. The unit recovers from the hibernate mode in less than 5 seconds to save time and power.
4- GPS trigger program that allows the user to automatically insert GPS coordinates into any Excel data book via a quick access button on the Algiz10X-HT.
5- GPS Tray program that allows the end user to easily configure the data input from the GPS trigger to fit the end user needs.

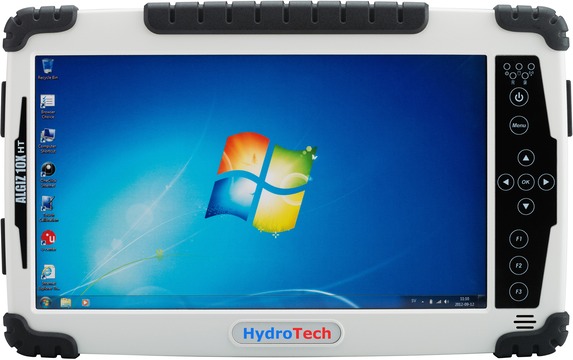

The powerful Algiz® 10X-HT rugged tablet PC runs sophisticated technology and can withstand weather elements and harsh handling - a perfect match for today's mobile workforce. It operates on a powerful Intel® Atom™ N2800 dual-core processor, with a 128 GB SSD, expandable via microSD™ and 4 GB of DDR3 RAM, offering top-of-the-line computing capability and massive storage capacity. It runs Windows 7 Ultimate, and is ready for Windows 8.
The Algiz 10X-HT features the latest generation of MaxView™ technology, with a brilliant 10.1-inch touchscreen that's perfect for field professionals who need a large display to handle detailed maps or other visuals. The screen's ambient light sensor adjusts backlighting automatically - so collecting data in bright sunlight is just as easy as reviewing it indoors.
The Algiz 10X-HT is a lightweight rugged device at just 2.9 pounds, and it's only 1.2 inches thick. Even with such a portable size, this tablet is built to withstand the harsh conditions that come with all kinds of industry fieldwork. It's IP65-rated and meets stringent MIL-STD-810G military standards for protecting against dust, water, vibrations, drops, extreme temperatures and varying altitudes.
With its integrated u-blox® GPS receiver and WAAS/EGNOS/MSAS capability, the Algiz 10X-HT is also a powerful and accurate tool for mapping and surveying. And it offers ultimate mobility: antenna pass-through connectors for both GSM and GPS let you use an external antenna when the unit is docked, and hot-swappable capability with a lithium-ion battery pack lets you go all day without stopping or shutting down.
Data capturing is easy and intuitive with this Algiz tablet, thanks to the built-in 5-megapixel camera with LED flash, microphone jack and several connectivity opportunities, including waterproof USB 2.0, VGA and RS232 ports. As for the keypad, this unit features three programmable buttons, space-saving 4+1 directional keys, one menu button and a resistive touchscreen that keeps navigation simple even in rainy weather.
On-the-go connectivity is crucial for today's enterprises, and this tablet offers Internet connection options to keep you up to speed no matter where you are. It features the latest in wireless connectivity: It's WWAN Gobi™ 3000-ready with a fully integrated modem and antennas. Use WLAN 802.11 b/g/n for easy and fast connection through other equipment hotspots and local networks, or Bluetooth 4.0 for short-range wireless connection to peripheral devices.
The Algiz 10X-HT is designed for field performance. It has the strength and power to carry out your critical operations dependably, even in extreme environments. So whether you're surveying, building, patrolling or distributing, you don't have to worry about your technology - just let it do its job while you do yours.
Specifications
Size: 10.8" (275 mm) x 6.7" (171 mm) x 1.2" (32 mm)
Weight: 2.9" lbs (1.3 kg)
Power Supply: 7 volts 1A regulated power supply to power multiprobes via RS232 port
Environment: Operating: - 4 ®F to 140 ®F (-20 ®C to 60 ®C) MIL-STD-810G, Method 502.5 Procedure II.
Storage: -40 ®F to 140 ®F (-40 ®C to 60 ®C) MIL-STD-810G,
Method 501.5, Procedure I; MIL-STD 810G, Method 502.5, Procedures I & III
Drop: 26 drops from 4 ft (1.22 m) MIL-STD-810G, Method 516.6, Procedure IV
Vibration: MIL-STD-810G, Method 514.6, Procedures I & II
Sand & dust: IP65, MIL-STD-810G
Water: IP65, MIL-STD-810G
Humidity: MIL-STD-810G, Method 507.5
Altitude: 15,000 ft (4572 m) at 73 ®F (23 ®C)
Processor: Intel® Atom™ N2800 1.86 GHz Processor
Memory/Disk: 4 GB DD3 RAM / 128 GB SSD
Operating System: Microsoft Windows 7 (ready for Windows 8)
Screen: 10.1" widescreen 1366x768 resolution LED high-brightness MaxView™
Technology. Resistive single touch. Ambient light sensor.
Keyboard/Keypad: - Power key
- Menu key
- 4+1 Navigation/directional keys
- 3 user-programmable buttons
- On-screen QWERTY soft keyboard
Battery: Hot-swappable Li-Ion Battery Pack:
Standard battery: 38.5 Wh
Extended battery: 77 Wh
Connections: 1 x USB 2.0 port*
1 x USB 2.0 port
1 x 9-pin serial RS-232 port*
1 x VGA*
1 x DC power port*
1 x RJ45 10/100/1000 LAN
1 x microSD Slot
1 x Audio/Microphone
*Waterproof even with latch open
Docking Connector: Contact Pin Type
1 x External GPS antenna input
1 x External GSM antenna input
Communication: AudioSpeaker / Mic / Headset jackBluetoothIntegrated Bluetooth v.4.0Cellular
(WWAN)WWAN (Optional) Gobi™ 3000-ready, supporting the following RF bands:
- HSPA+ 850/900/1900/2100/AWS MHz
- Quad-band GSM/GPRS/EDGE - 850/900/1800/1900 MHz
- CDMA EVDO Rev. A - 800/1900 MHzWireless LAN802.11 b/g/n supports WEP, WPA, WPA2
Navigation: Integrated u-blox® GPS, WAAS/EGNOS/MSAS-capable
Camera: 5-Megapixel Camera + LED flash
Options: Vehicle cradle that includes: 1 DC PWR, 2xUSB, 2xRS232, 1x10/100 LAN, 1xGPS
antenna input, 1xGSM antenna input.
Carry cases
Pole mount solution
12V vehicle charger
For a quote please email your request to sales or call 512-846-2893
