The OTT® MF pro is a user-friendly, low maintenance electromagnetic flow meter for cost-efficient in-stream discharge measurement. The OTT MF pro saves time and resources in the field by automatically calculating discharge (based on USGS and ISO methods) and graphing velocity data in real-time, allowing trends to be visualized quickly. The rod-mounted meter with color screen captures all data, allowing measurements to be taken by one person and eliminating the need for handwritten calculations or post-measurement data correction.
A small, detachable electromagnetic sensor is ideal for use in low-flow environments by eliminating the need for minimum velocity requirements, and measurements are taken directly at the sensor head rather than from a sample volume farther away. The electromagne- tic sensor has no moving parts, is virtually maintenance-free, and requires no calibration, un- like mechanical meters.
Additionally, electromagnetic sensors are preferred for use in conditions with large amounts of organic matter as their magnetic inductive measurement principle is not affected by organic matter in the sampling area like acoustic or mechanical meters. Electromagnetic sensors are a cost-effective option for budget-conscious monitoring organizations, making the OTT MF pro a practical choice for discharge measurement in a variety of environmental applications.
OTT MF Pro Video
OTT MF pro Flow Meter Webinar
OTT MF pro: cost-efficient discharge measurement Applications
Water velocity measurement in:
- Open channels, including rivers, streams, and canals
- Low-flow conditions
- Environments heavy inorganic matter
Performance Features & Benefits
- Automatically calculates total discharge based on USGS and ISO methods, saving time and eliminating potential for error caused by written transcription

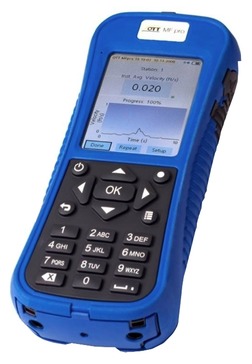

- Rod-mounted meter captures all data, eliminating the need for any hand-written information
- Real-time velocity graphed on the full-color handheld allows trends to be visualized quickly
- Small sensor head and magnetic inductive measuring principle make the sensor ideal for measurement in low-flow and heavy organic matter environments, unlike mechanical and acoustic meter
- Electromagnetic sensor head has no moving parts and never requires calibration, making it virtually maintenance- free
Additional Features
- Easy-to-use,menu-driven,full-color interface display remains readable even in bright sunlight
- Data storage for up to10 profiles (metering sites) with 32 stations (vertical profiles) per site
- Download data to a PC via a simple USB connection
- Rechargeable lithium-ion battery has approximately 18 hours of battery life
- Light-weight, rugged, and portable meters only 1.5 pounds and IP67 water resistant
Specifications:
Velocity Measurement
- Measurement Method: Electromagnetic- Measuring Range: 0 ft/s to 20 ft/s
- Accuracy: 0 to 10 ft/s ±2% of reading ± 0.05 ft/s;
- Accuracy: 10 to 16 ft/s ±4% of reading
- Zero Stability: ± 0.05 ft/s
- Resolution: 0.01 measurement < 100; 0.1 measurement > 100
Velocity Methods
- Stream Profile: 1-, 2-, 3-, 5- and 6-point-measurements (ISO and USGS methods)
- Conduit Profile: 0.9 x Vmax; 0.2/0.4/0.8; 2D; Velocity Integrator
Conduit Shapes
- Circular, Rectangular, Trapezoidal, 2/3-Egg, Inverted 2/3 Egg
Discharge Method
USGS and EN ISO 748
- Mid-Section Method
- Mean-Section Method
Power Supply
- Lithium-ion rechargeable
- Battery life: typically 18 hours (20 °C)
Data Storage
- Up to 10 discharge sites and 32 vertical profiles per site
Operating and Storage Temperature
- -4°F to 140°F (-20 °C to 60 °C)
Graphical Display
- Color, LCD 3.5" QVGA
- Transflective (readable in direct sunlight)
USB Connector
- USB, Type Mini-B, 5-pin
File Format
- TSV-Data Format (Tab Separated Variable)
File Type
- Real-time - Profiling - Event log
Noise Rejection
- 50 Hz, 60 Hz (user-selectable)
Cable Length
- 5 ft, 20 ft, 40 ft, and 100 ft. (1.5 m, 6.1 m,12.2 m and 30.5 m)
Material
- Sensor: ABS glass-filled
- Handheld meter: Polycarbonate with thermoplastic elastomer (TPE) over-mold
General Specifications
Sensor dimensions:
- LxWxH:4.7in.x1.7in.x2.5in
- Weight: 1.1 lbs (with 20 ft cable) Handheld meter:
- LxWxH:8.6in.x3.7in.x2.1in.
- Weight: 1.5 lbs (without sensor)
IP-Rating
- Sensor: IP68
- Handheld meter: IP67
