Why buy Sigma Samplers? watch video
Features and Benefits
Easy to Use

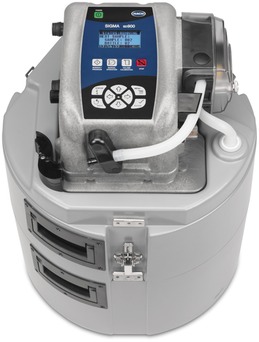

The simplified keypad with intuitive icons and scrolling menu on the Hach Sigma SD900 Portable Sampler assures easy setup. Program set up—even for first time users—is typically less than two minutes. Large keys accommodate gloved hands. Color coded power/stop buttons are easy to identify. The large, 5-line, transflective LED backlit display stays readable in bright or subdued lighting.
Reduced Maintenance
Extended pump tubing life reduces maintenance costs and pump downtime. The rugged, see-through pump cover stands up to daily use and makes visual inspection and troubleshooting quick and convenient. The desiccant tube— mounted on the side of the controller—and the pump tubing are readily accessible and can be changed in minutes (versus other desiccant chamber designs that require disassembly to reach the desiccant).
Reliable Peristaltic Pump Technology
The strong pump draw and spring-loaded rollers ensure that large particulates will not interfere with sample collection. The SD900 uses a positive displacement peristaltic pump. Flow is induced by squeezing a flexible 3/8 in tube. A positive displacement peristaltic pump induces flow by squeezing a flexible 3/8-inch tube. The spring loaded rollers reduce pump tubing wear and help prevent pump jams. The life time of the pump tubing is 20,000 cycles—compared to only 1,000 cycles on other samplers.
Maximize Data with Minimal Effort
Use Hach’s SampleViewTM software to remotely program the controller, view and download sample history to a computer, save templates, upgrade firmware in the field, and download event logs. Reduce time required for manual record-keeping.
Wide Variety of Applications— Including SDI-12 Communications
The SD900 sampler is ideal for NPDES stormwater compliance, stormwater runoff monitoring, pretreatment compliance, CSO studies and monitoring, industrial wastewater discharge, and WWTP process control. Program the sampler for time-based, flow-based, composite and multiple bottle sampling setups. Up to three separate sampling programs can be stored simultaneously for optimal sampling flexibility.
The optional SDI-12 communication interface can connect to devices such as Hydrolab MS5 and DS5 water quality sensors to collect data that can be used as triggers in setpoint sampling applications.
Modify in the Field for Composite or Discrete Sampling
Quickly switch between composite and discrete sampling right in the field using the interchangeable compact or standard sized base. The distributor arm and full bottle shut-off device can be changed in minutes by simply
loosening a thumbscrew—no tools are necessary. Program setup takes less than two minutes or recall a saved template using the SampleView program.
Durable, Heavy-Duty Construction. Tolerates Harsh Environments
The molded ABS/PC exterior of the SD900 controller
enclosure is tough. The controller is tightly sealed to
withstand humidity and hostile, corrosive environments.
The NEMA 4X, 6, IP67 housing isolates all electro-mechanical components. The keypad, switches, and display are covered by a waterproof, corrosion-resistant polyester
membrane. The sealed connectors and pump shaft seal
further ensure the unit’s environmental integrity.
Protected Samples C
Collected samples are protected from impact and extreme ambient conditions inside the double-walled insulated base. The compact and standard base holds 8.5 and 32 pounds of ice, respectively, with the sample bottles in place. Carrying the sampler is easy with the exterior, flip-up handles that nest flush to the base when not in use. The SD900 sampler is designed for use in 18-inch manholes.
Advanced Liquid Detection Techniques
The ultrasonic liquid sensing system used in the Sigma SD900 Portable Sampler delivers repeatable and accurate sample volumes.
Rinse/Sample Retry
The intake line is thoroughly purged before and after every collection to obtain representative samples. Up to three optional line rinses precondition the intake tubing to reduce cross-contamination of the source liquid prior to sample collection. In the event that a plugged intake prevents collection, the sampler detects the failed attempt and can be optionally programmed to repeat the cycle up to three times, starting with a purge.
Specifications:
Controller Housing: High impact injection-molded, ABS/PC plastic. Submersible, watertight, dust-tight, corrosion- and ice-resistant NEMA 4X, 6, IP67
Base Housing: Impact resistant ABS plastic 3-section construction Double-walled base with 2.54-cm (1-in.) insulation. Direct ice contact with bottles
Temperature: General Use: 0 to 50°C (32 to 122°F) Storage: -30 to 60°C (-22 to 140°F)
Certification: Controller: CE. Optional AC Power Supply: UL/CSA/CE Optional Battery: CE
Power Requirements: 12 Vdc supplied by optional a/c power supply or battery. Average current with pump running: 2 Vdc
Internal Battery: Lithium ion battery (maintains real time clock for five years minimum):
Internal Clock: Indicates real time and date
Graphics Display: 128 x 64 dot matrix backlit LCD, visible in direct sunlight
User Interface: Self prompting/menu driven program. 13-key embossed keypad including power key, 4 function keys, 8 navigation keys, and LED indication
Data Logging: Store up to 510 entries in Sample History log including sample time stamp, bottle number, and status of sample (success, bottle full, rinse error, user abort, distributor error, pump fault, purge fail, sample timeout, power fail and low main battery)
Event Log: Includes power on, power fail, firmware updated, pump fault, distributor arm error, low memory battery, low main battery, user on, user off, program started, program resumed, program halted, program completed, grab sample, pump tube change required, SDI-12 communication errors, set point high on/off, set point low on/off.
Sampling Pacing Modes: Composite and discrete multiple bottle time, multiple bottle flow, single bottle time, single bottle flow, flow with time over ride, variable interval, user start/stop, and external setpoint
Overload Protection: Internal software-protected 7 amp fuse
Diagnostics: Tests pump, distributor, keypad, LCD, and liquid detect calibration
Program Languages: English, Spanish, French, German, Italian, Czech, Turkish, Portuguese
Program Lock: Access code protection prevents tampering of program and system settings
Program Delay: Programmable sampler start time/date or programmable number of counts to expire before program can start

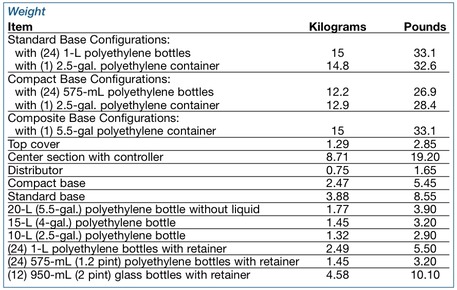

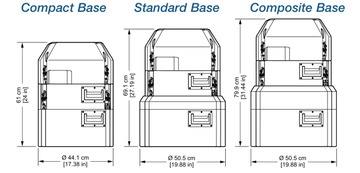

Dimensions
Standard Base:: 50.5 x 69.4 cm (19.9 x 27.3 in.)
Compact Base:: 44.1 x 61 cm (17.4 x 24 in.)
Composite Base:: 50.28 x 79.75 cm (19.8 x 31.4 in.)
Capacities: Standard Base Capacity
(24) 1-L polyethylene or 350-mL glass bottles (8) 2.3-L polyethylene or 1.9-L glass bottles (4) 3.8-L polyethylene or 3.8-L glass bottles (2) 3.8-L polyethylene or 3.8-L glass bottles or (1) 15.1-L (4-gal.)
polyethylene composite bottle
or (1) 20.8-L (5.5-gal.)
polyethylene bottle
or (1) 9.5-L (2.5-gal.)
polyethylene or glass bottle
or (1) 9.5-L (2.5-gal.) glass bottle
Compact Base Capacity
(24) 575-mL (1.2-pint) polyethylene bottles
(8) 950-mL glass bottles
(1) 9.5-L (2.5-gal.) polyethylene or glass bottle
Sampling Features
Multiple Programs: Stores up to 3 sampling programs
Cascade: For two samplers in combination—the first sampler, at the completion of the program, initiates the second
Program Status Display: Alerts operator to low main battery, low memory battery, plugged intake, jammed distributor arm, sample collected, and purge failure
Automatic Shutdown: Multiple Bottle Mode: After complete revolution of distributor arm (unless continuous mode is selected)
Composite Mode: After preset number of samples have been delivered to composite container, from 1 to 999 samples, or upon full container
Sample Volume: Programmed in 10 mL increments from 10 to 10,000 mL
Sample Volume Repeatability:
± 5% of 200 mL sample volume using uncalibrated liquid detect under defined sampling conditions at 15-ft. vertical lift (16 ft. of 3/8-in. vinyl intake tube configured for single bottle using full bottle shut off at 70°F at 5000 ft. elevation)
Pacing Intervals: Selectable in single increments from. 1 to 9,999 flow pulses or 1 to 999 hours in 1 minute increments
Sample Distribution Modes: Continuous and non-continuous. Bottles per sample or samples per bottle
Manual Grab Sample: Deliver a grab sample to a specific bottle location
Timed Bottle Sets: Enables a single sampler to function like multiple samplers by segregating a bottle set
Communications
EPROM Flash Memory: Via RS-232. Permits embedded software upgrades in the field
Serial Interface: RS-232 compatible. 115 200 baud maximum. Allows on-site collection of stored data
SDI-12 Connectivity: Plug-and-play interface to Hydrolab DS5 and MS5 sondes to provide measurement data in setpoint sampling applications
SampleView Data Management Software: Download, analyze, and report data, save templates, download sample history and event logs, create graphs for reports and presentations. Link directly to PC using serial port and DB 9 cable Perform firmware upgrades in field
Sample Pump, Intake Tubing, and Intake Strainer
Sample Pump: High speed peristaltic. 4 rollers with spring tension. 0.95 ID x 0.16 OD cm. (3/8 ID x 5/8 in. OD) pump tube
Pump Enclosure: Rugged, corrosion-resistant polycarbonate door, high impact- resistant, rated IP37, polyphenylene sulfide track
Vertical Lift: Minimum 8.5 m (28 ft.) suction head using 29 ft. of 3/8-in. vinyl intake tube at sea level at 20 to 25°C
Sample Transport Velocity: 0.9 m/s (2.9 ft./s) at 4.6 m (15 ft.) vertical lift (16 ft. of 3/8-in. vinyl intake tubing at 70°F, at 5000 ft. elevation)
Pump Flow Rate: 80 mL/s at 0.91 m (3 ft.) vertical lift in 0.95-cm (3/8-in.) ID intake line
Liquid Sensor: Ultrasonic
Intake Purge: Air purged automatically before and after each sample. Duration automatically compensates for varying intake line lengths
Intake Rinse: Intake line optionally rinsed with source liquid prior to each sample; from 1 to 3 rinses
Intake Retries or Fault: Sample collection cycle optionally repeated from 1 to 3 times if sample not obtained on initial attempt
Intake Tubing: 9.5 mm (3/8 in.) ID vinyl Teflon® lined polyethylene
Intake Strainers: Choice of Teflon and 316 stainless steel construction or all 316 stainless steel in standard size, high velocity, or low profile for shallow depth applications
Solar Power Panel: 12 Vdc regulated supply voltage, 5 watts minimum
Engineering Specifications:
- The sampler shall be suitable for the representative collection of toxic and conventional pollutants.
- The sampler shall incorporate a high- speed peristaltic pump for collection of the sample liquid.
- The sample pump shall produce a minimum intake velocity of 2 feet per second at 25 feet vertical lift in a 3/8-inch ID intake line.
- All electromechanical components shall be protected within a totally sealed housing conforming to NEMA 4X, 6 and IP 67 standards for submersible, watertight, dust-tight, and corrosion resistant operation.
- The sampler shall have interchangeable compact and standard bases.
- The sampler base shall be double wall insulated constructed of ABS plastic.
- The sampler shall be convertible to discrete operation by installing a modular distribution assembly and bottle set.
- The sampler shall be convertible to composite operation by installing a composite container and full bottle shut off.
9. The sampler pump tubing shall be 3/8-inch ID and 5/8-inch OD medical grade silicone.
10. The sampler shall be provided with (select: 10 ft, 25 ft., or 100 ft.) of 3/8-inch ID (select: Teflon lined polyethylene or vinyl) intake tubing and a weighted strainer constructed of 316 stainless steel and Teflon.
11. The sampler shall have a hermetically sealed 13 key, multiple function keypad and self-prompting 5-line128 x 64 dot matrix, backlit liquid crystal graphics display.
12. The sampler shall have the capability of retaining up to three complete sampling programs in memory and be equipped with data management software (SampleViewTM).
13. The sampler shall be capable of operation
in a times or flow proportional mode.
14. The sampler pump shall purge the intake
line before and after each sample. The duration of the purge shall be automatically adjusted for varying intake line lengths.
15. In the event that sample liquid is not obtained on the initial attempt, the sampler shall optionally purge and repeat the collection cycle.
16. To permit sampling during work shifts or other specific periods, the sampler shall be programmable for up to 12 start/stop interval pairs.
17. The sampler base shall be of high impact vacuum-formed ABS plastic, 3-section construction.
18. The base shall hold (select) standard base; 32 pounds of ice with the 350-mL glass bottles in place, compact base; 8.5 pounds of ice with the 575-mL polyethylene bottles in place.
19. Thesamplershallbeprovidedwitha4- 20mA interface allowing flow proportional sampling from an external flow meter analog output.
20. The sampler shall be available with optional SDI-12 plug and play interface to Hydrolab DS5 and MS5 sondes to provide measurement data in setpoint sampling applications.
21. AnoptionalACpowersupplyshallbeUL, CE and CSA certified.
22. The sampler shall be the Sigma Model SD900 Portable Sampler, manufactured by Hach Company.

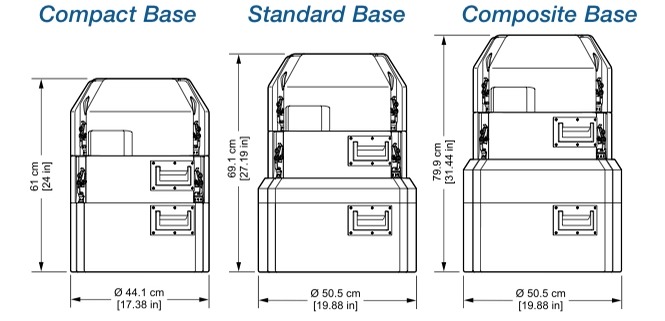

Dimensions
Ordering Information
SD900 Portable Sampler Bundles
Bundles include; 6 amp-hour 12 Vdc battery, 115 Vac power converter/battery charger, sample bottle(s), vinyl intake tubing (25 ft.), and Teflon/stainless steel strainer. To order components separately, please contact Hach.
900SDPC1: Compact Portable Sampler with SD900 Controller; includes 10 L (2.5 gal) PE container and full-bottle shut off
900SDPC24: Compact Portable Sampler with SD900 Controller; includes 24 575-mL PE bottles with retainer and distributor
900SDPS1: Standard Portable Sampler with SD900 Controller; includes 10 L (2.5 gal) PE container and full-bottle shut off
900SDPS24: Standard Portable Sampler with SD900 Controller; includes 24 1-L PE bottles with retainer and distributor
Intake Tubing and Strainers
922: Teflon-lined Polyethylene Tubing, 25 ft., 3/8 in. ID (requires Prod. No. 2186 Connection Kit)
2186: Connector Kit, for Teflon-lined polyethylene tubing
920: Vinyl Intake Tubing, 25 ft., 3/8 in. ID
2070: Strainer, all 316 Stainless Steel
2071: Strainer, for shallow depth applications, all 316 Stainless Steel
4652: Strainer, for high velocity and shallow depth applications
Pump Tubing
4600-15 Pump Tubing, 15 ft., bulk
8753800 Pump Tube Insert, pre-cut length
Power
8754400 Lead Acid Battery, with 3-pin connector
8753500US Lead Acid Battery Universal Smart Charger, 3-pin
8754500US U.S. Power Supply, 100-120 Vac, 3 pin
Cables and Interfaces
8739400: Power Adaptor Cable; SD900, 2- to 3-pin
8757100: Multi-purpose Full Cable, 10 ft., 7-pin, connects SD900 sampler to Hach flow meter
8756900 Multi-purpose Half Cable, 10 ft., 7-pin
8758200: Sampler or Flow Meter to PC DB9 Cable, 3 m, 7-pin
8757500 SampleView CD with PC DB9 cable, 3 m, 7-pin
87390SD SDI-12 Receptacle (factory-installed option)
8762400 SDI-12 Cable, for Hydrolab DS5/MS5 to SD900 connection, 50 ft.
8762500: SDI-12 Cable, for Hydrolab SD5/MS5 to SD900 connection, 100 ft.
8760600 Universal Junction Box, 4-20 mA input
Accessories
1355 Suspension Harness, to suspend the sampler
9542 Manhole Support Bracket/Spanner, 18- to 28-in.
9557 Manhole Support Bracket/Spanner, 28- to 48-in.
5713000 Manhole Support Bracket, 18- to 27-in.
